UHLMANN UPS 5 - C 2156 Blister and cartoning line for pens, syringes, or vials
Ref: I17280D
UHLMANN UPS 5 - C 2156 Blister and cartoning line for pens, syringes, or vials
Blister line for packaging pre-filled parenteral products (pens, syringes, vials, etc.), consisting of:

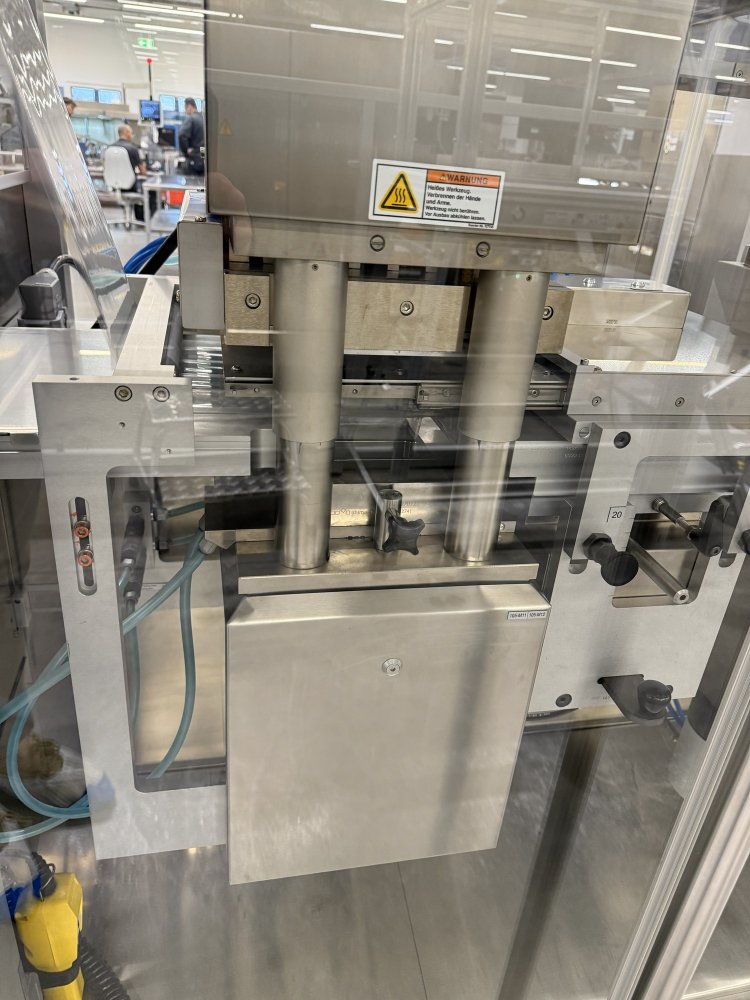

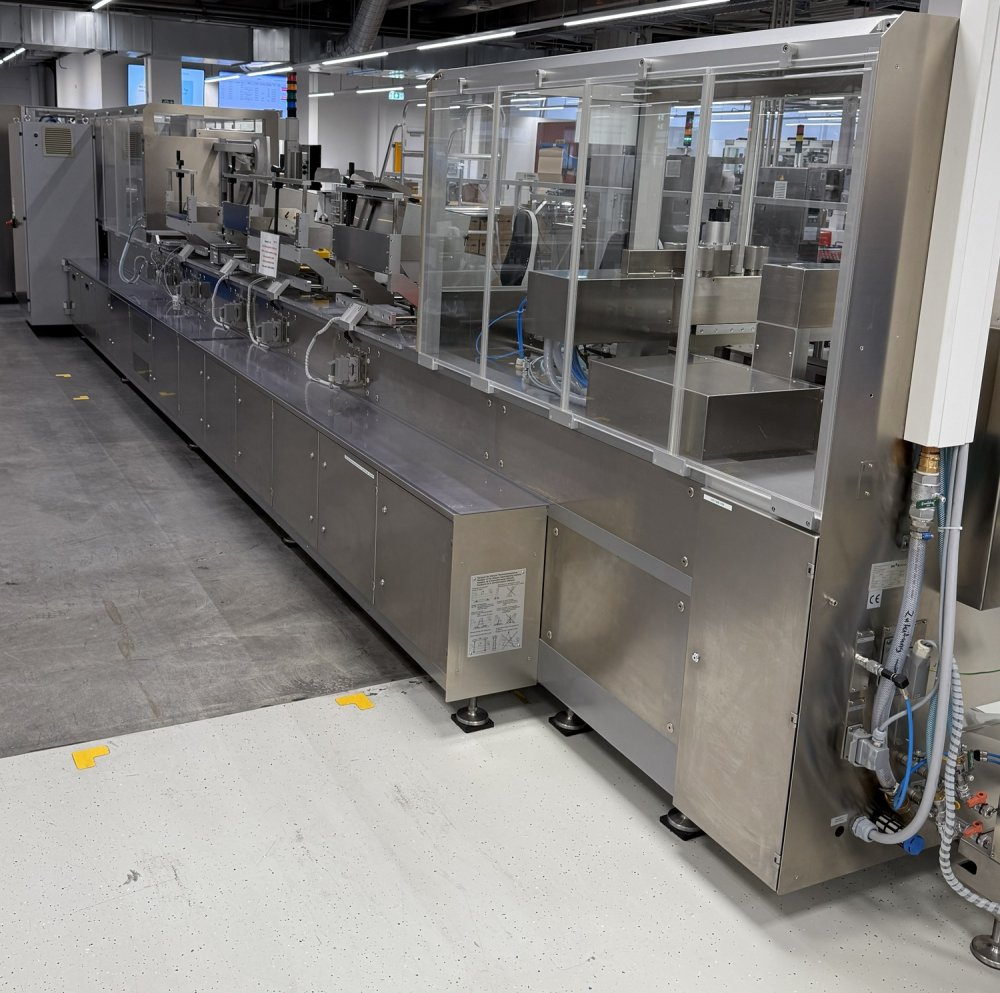

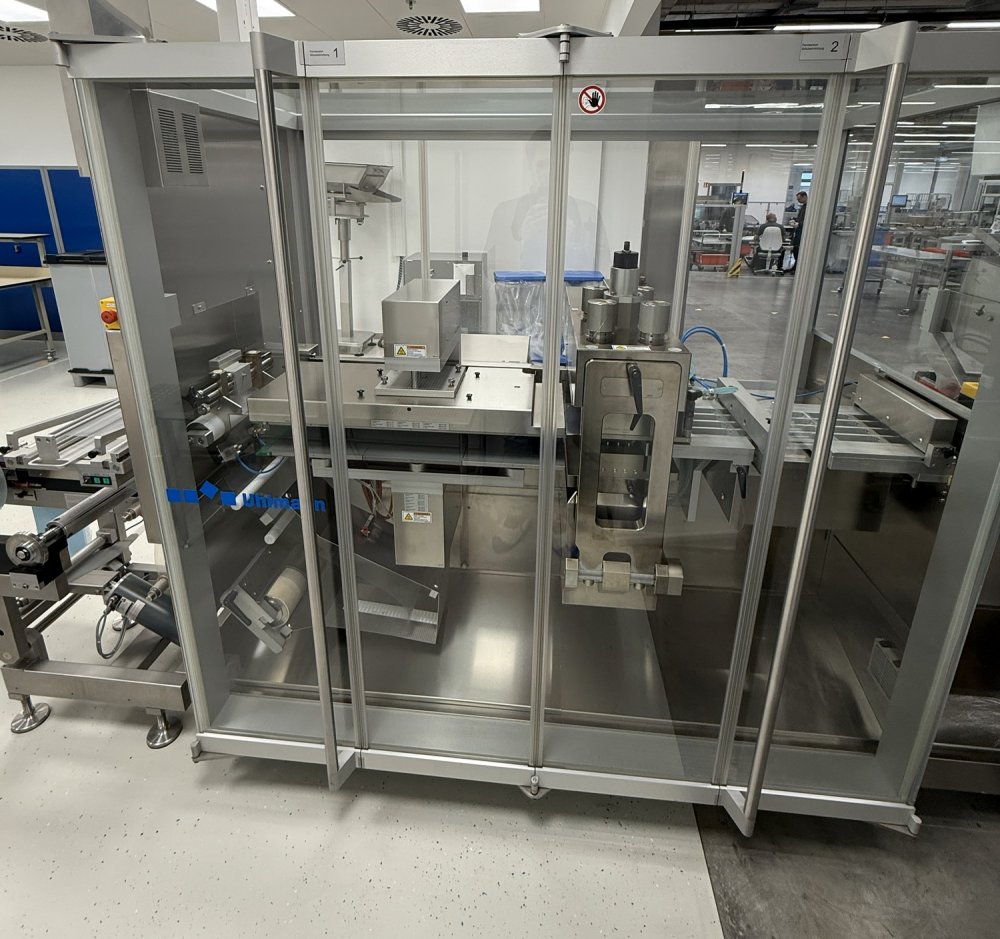

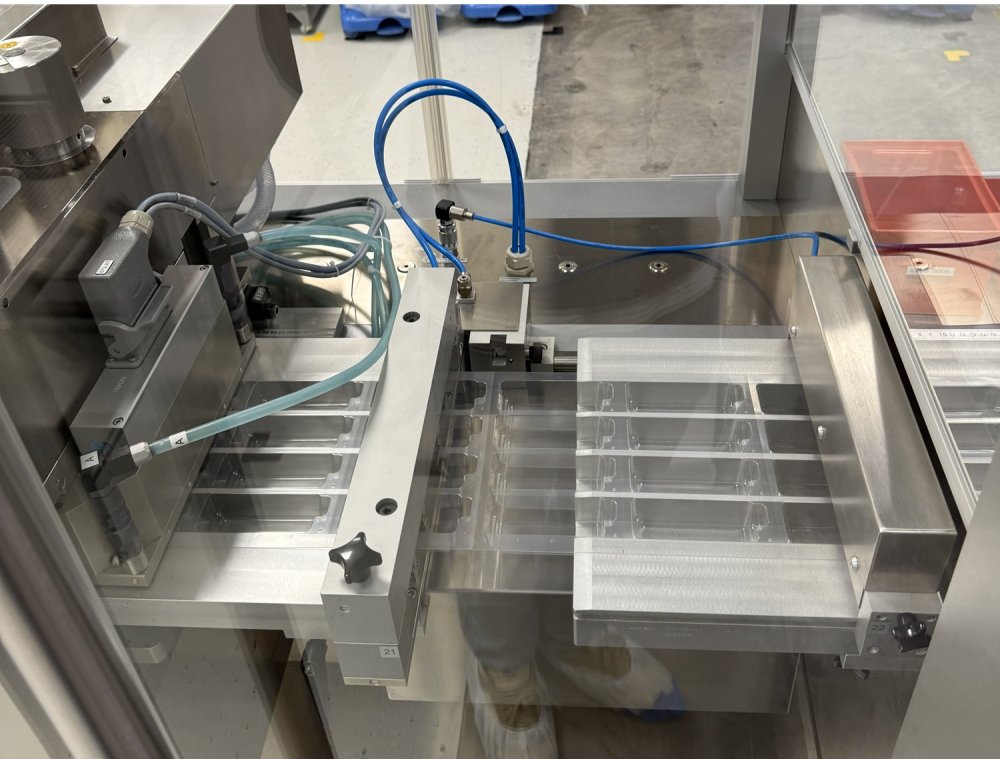

Uhlmann UPS 5 ET thermoforming machine:
- Blister packer with a capacity of 50 punching cycles/min.

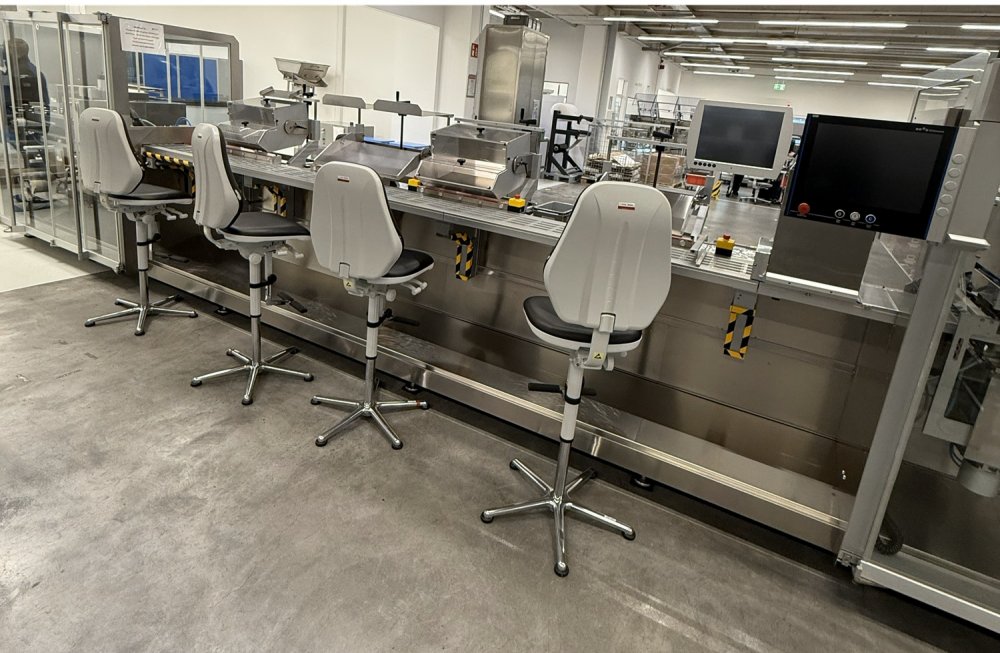

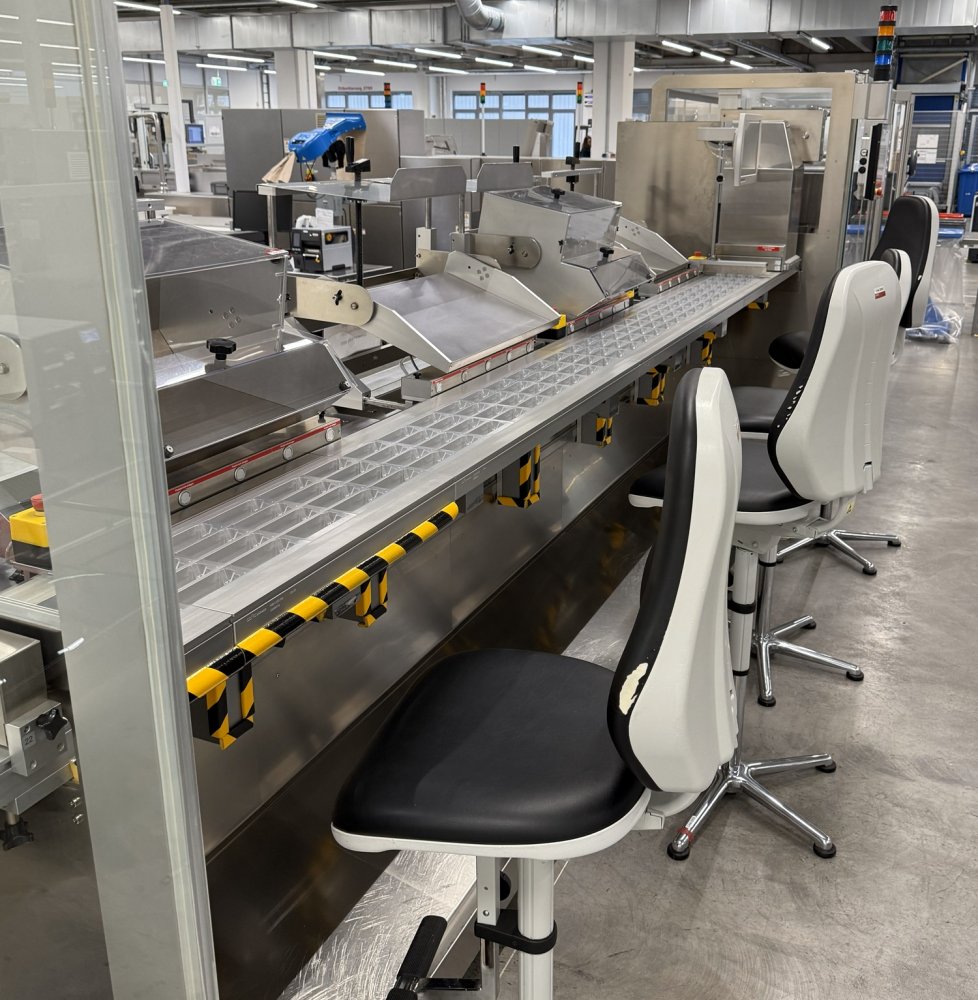

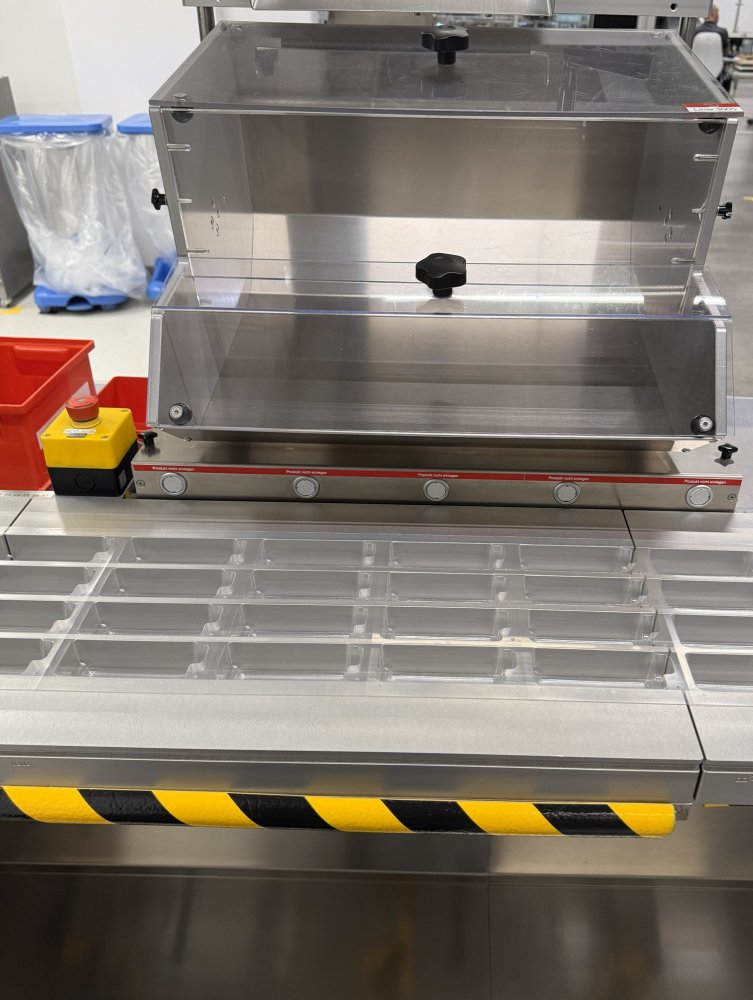

- 3 manual loading stations for the packaged goods
- VisioRead fill level control
Format range:
- Film width: 100-300 mm
- Feed: 64-272 mm
- Punching width: 28-284 mm
- Form depth: max. 40 mm

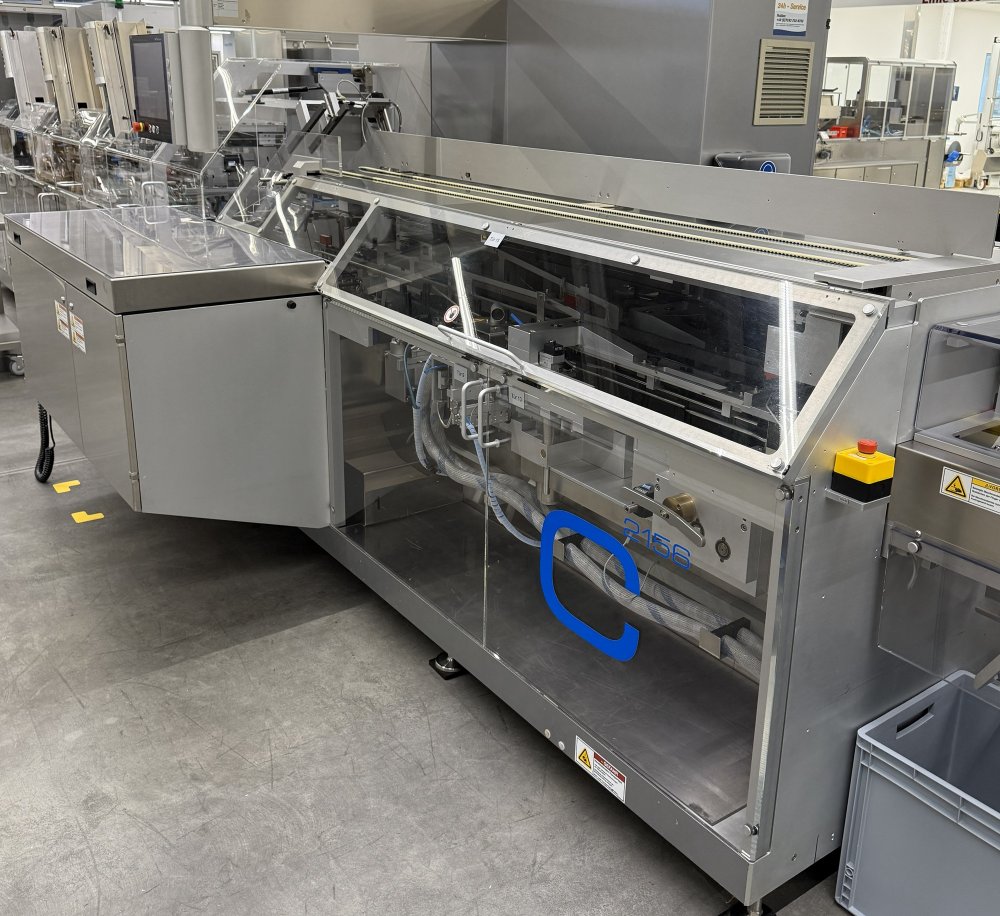

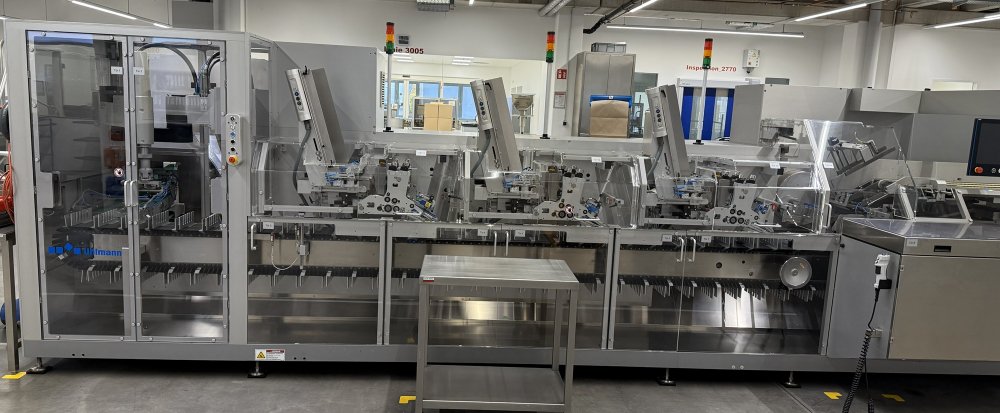

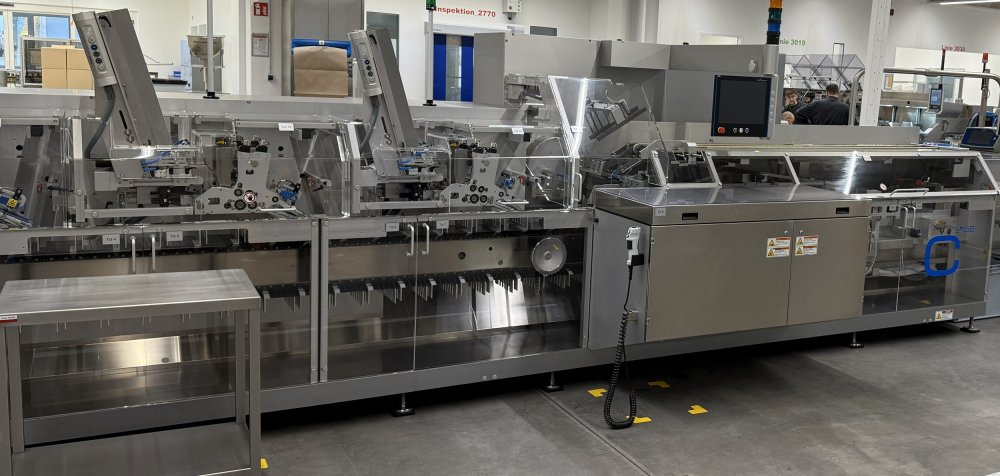

Uhlmann C 2156 - Cartoner with robotic feed
- Output of up to 150 folding cartons/min.

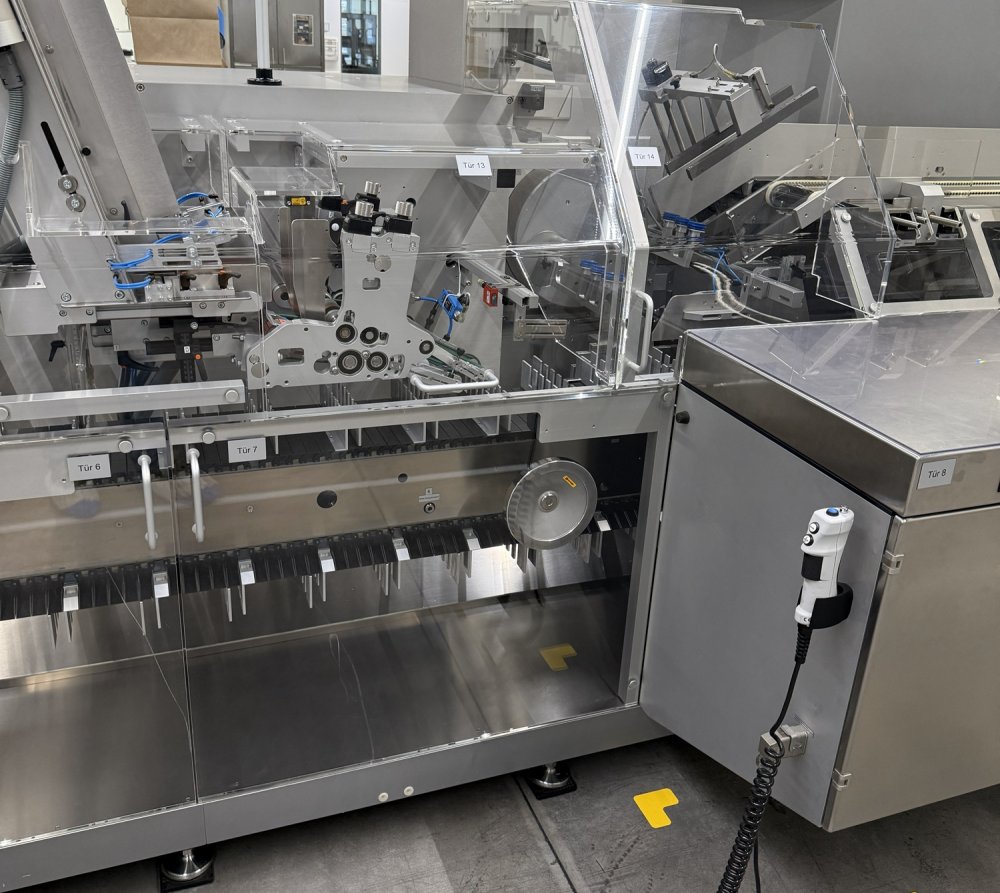

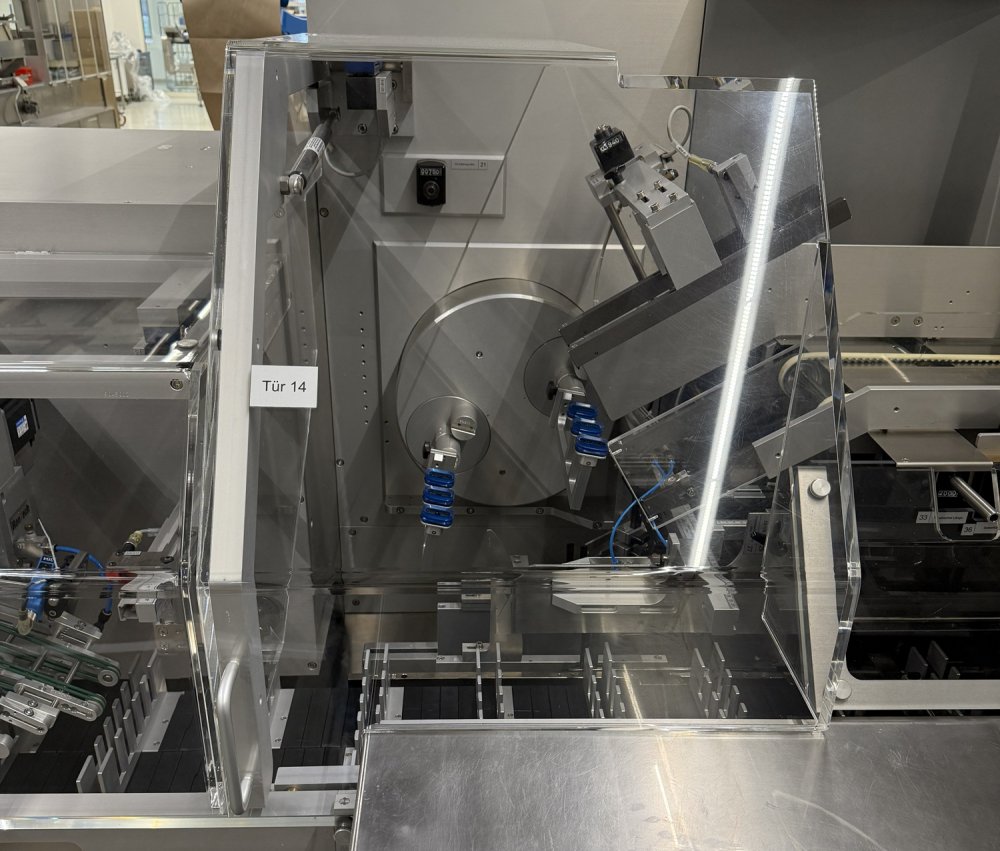

- Robotic feeder transfers blisters to the product cup chain

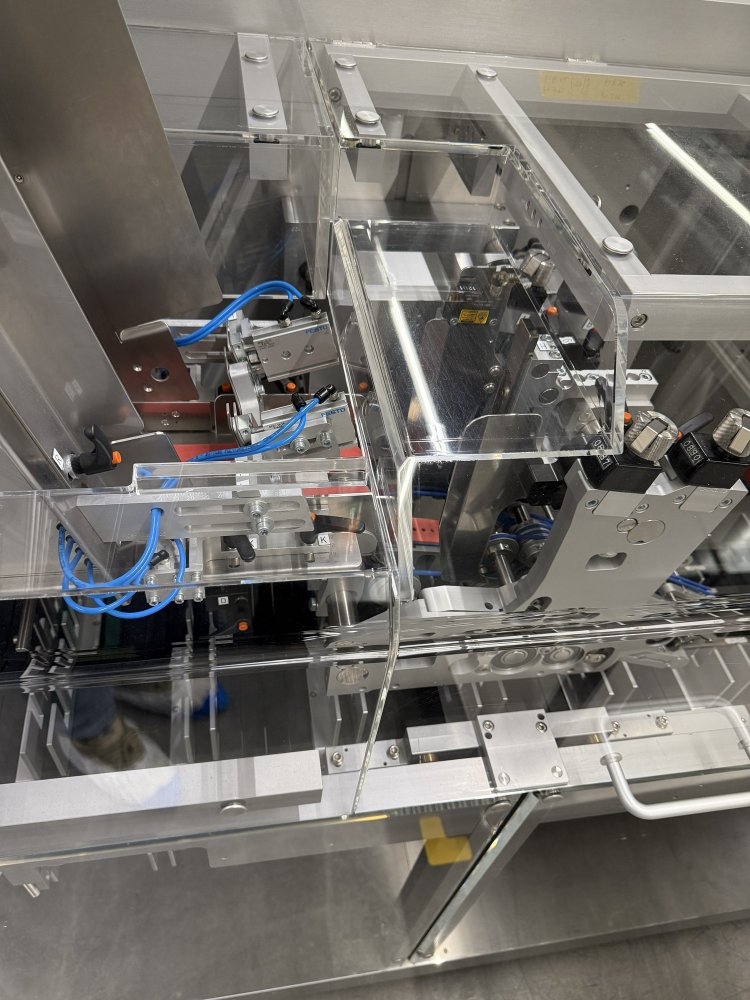

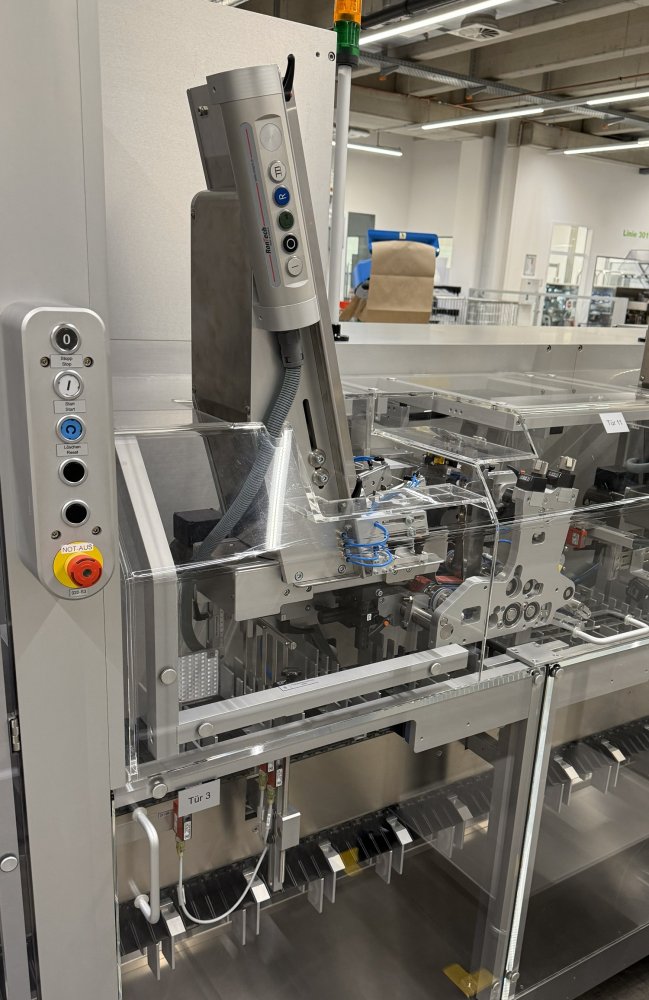

- Option for up to 3 inserts with Rontech booklet feeder
Format range - (width x height x length)
- Folding carton min: 30 x 15 x 63 mm
- Folding carton max: 100 x 90 x 150 mm
Manufacturer: Uhlmann
Year of construction: 2010
Floor Space: siehe Layout
